Description

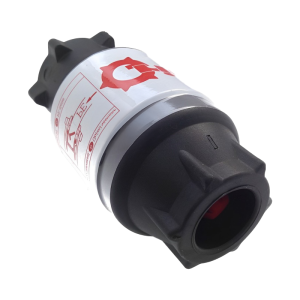

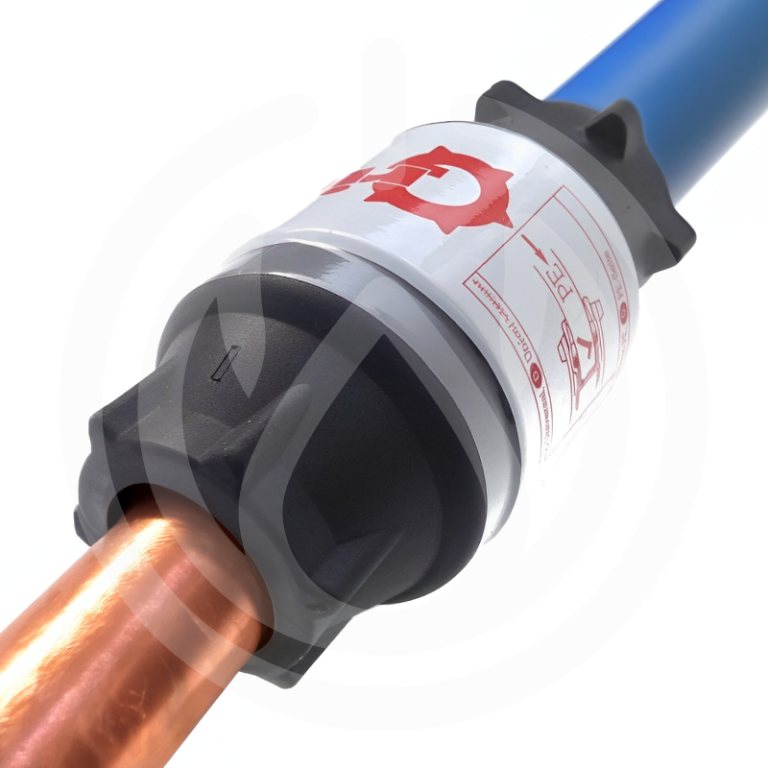

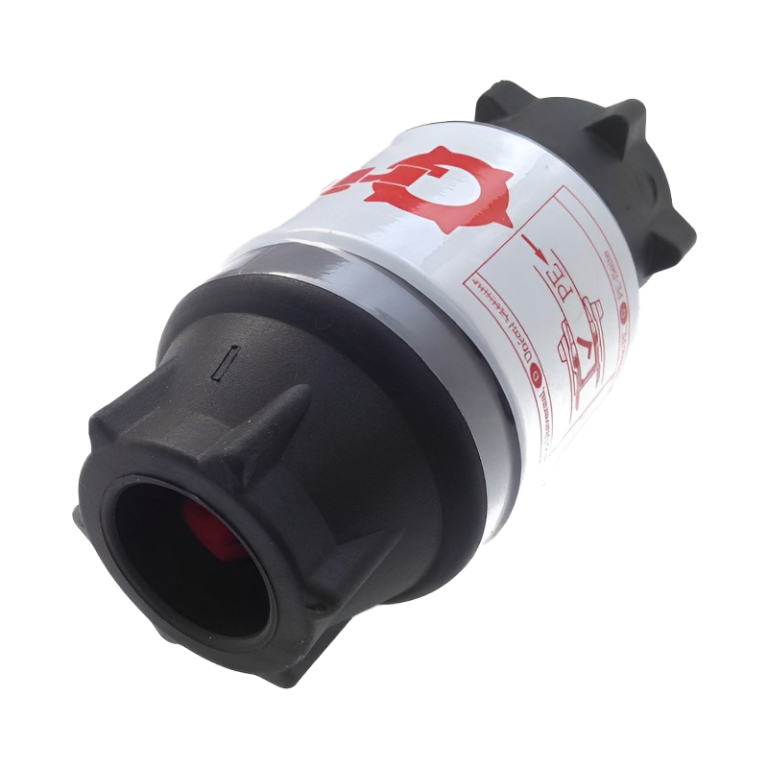

The TALBOT GRIPPA universal adaptor is an easy to use universal fitting that connects onto a wide variety of existing lead, galvanised iron and copper pipes withoout the need to change any components. The adapters are
- WRAS approved with a working pressure 16 bar
- Connects MDPE to various lead, copper & iron pipe
The universal adapater comes in 6 sizes as follows
- Talbot 20mm x 1/2" Universal Adapter - Talbot E5175
- Talbot 20mm x 3/8" Universal Adapter - Talbot E5172
- Talbot 20mm x 3/4" Universal Adapter - Talbot E5178
- Talbot 25mm x 3/8" Universal Adapter - Talbot E4811
- Talbot 25mm x 1/2" Universal Adapter - Talbot E4752
- Talbot 25mm x 3/4" Universal Adapter - Talbot E4812
|
Universal end Pipe OD |
3/8" Grippa 15-21mm |
1/2" Grippa 21-27mm |
3/4" Grippa 27-34mm |
PE End - Suits metric BS6572 and BS6730 pipe with a liner and DIN and ISO pipes (blue grip ring, black "o" ring marked "M") or imperial BS pipe (black grip ring, black "O" ring) |
|
Type of Pipe Lead
Galvanised Iron Copper |
3/8" 4lb - 6lb
3/8" 15mm, 1/2" |
1/2" 5lb - 9lb
1/2" 22mm, 3/4" |
3/4" 7lb - 11lb
3/4" 28mm, 1" |
