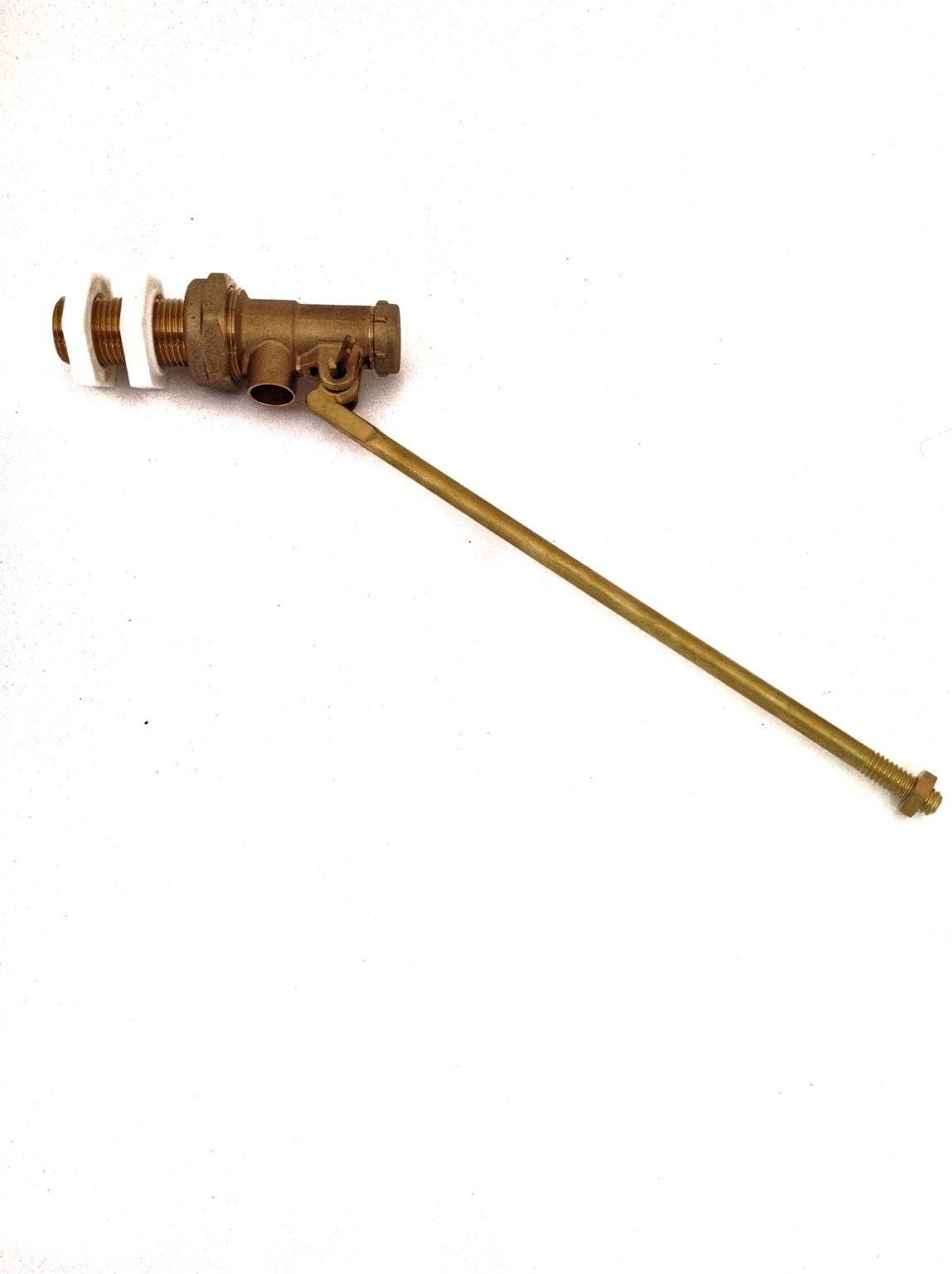

High Pressure Part 1 Brass High Pressure Float Valve with an 8 1/2 Inch long arm. This filling valve is manufactured to BS1212 part 1 and has a Plastic piston and seat
Most plumbing products are stated in BSP imperial thread measurement which means the actual diameter of the thread is approximately 1/4 inch larger than that stated in BSP Terms. For example this 1/2 Inch BSP thread measures approximately 3/4 inch in diameter.
Where to use a High Pressure Float Valve
A high pressure ballcock float valve has a small filling hole and therefore will take longer to fill than a low pressure float valve but will significantly reduce noise and water hammer. This noise can happen with a high pressure water supply if a standard or low pressure float valve is used. In addition the design of this valve allows it to fully seal and have a quick response for shut-off and turn-on under the high pressure situation.
Technical Specifications of this high pressure float valve
| Inlet Thread Size | 1/2 Inch BSP (actual thread diameter 3/4 Inch - see above) |
| Arm Length | 8.5 Inches - Part 1 (straight) |
| Arm Thread | 5/16" BSP (actual thread diameter 9/16 Inch) |
| Material | Plastic Piston and Valve Seat |
| Compatible Ball Float | 4 1/2, 5 or 6 Inch Diameter (not provided) |
| Maximum Pressure | 14 bar |
| Use | Anti-corrosion,can be used with recycled water |
| Compliance | Manufactured to BS1212 part 1 |
